Metal CNC Milling Vertical Machine SINO YSV-1160 3 Axis CNC Milling Machine Kit
The following characteristics of the YSV-1160 machine:
Machine Center with Ultra High Performance
1. Tool changes now take just 1.4 seconds thanks to Taiwan's frequency converter tool magazine, which significantly boosts processing speed;
2. All three axes are outfitted with high torque output as standard, allowing for quick and precise positioning. 3. The spindle motor is outfitted with a standard 11–15 KW high–torque generalized motor. This spindle torque is significantly higher than that of other brands of the same model, making it ideal for heavy cutting. 4. The machine tool parts come from a well-known manufacturer with cutting-edge configuration in the industry.
The following are some characteristics of the YSV-1160 optical machine:
The German Rexroth line rail is used, and it has a 45mm line rail width; the Y-axis has a 745mm extra wide span;
3. Strong stiffness guarantees effective cutting and is supported by six X-axis sliding seats;
4. The three-axis uses PMI outer diameter 40mm C3 grade screws and NSK original bearing (3062), which are both operated in the 3+2 mode and pre-tensioned to prevent thermal displacement.
5. High-rigidity BBT spindle with ring spray design and 150mm outer diameter;
6. Use an ultra-high-speed cutting cylinder that is unique to Taiwan, with a cutting time of up to 0.28S;
7. The machine tool's bed is built of precision, high-grade cast iron HT300.

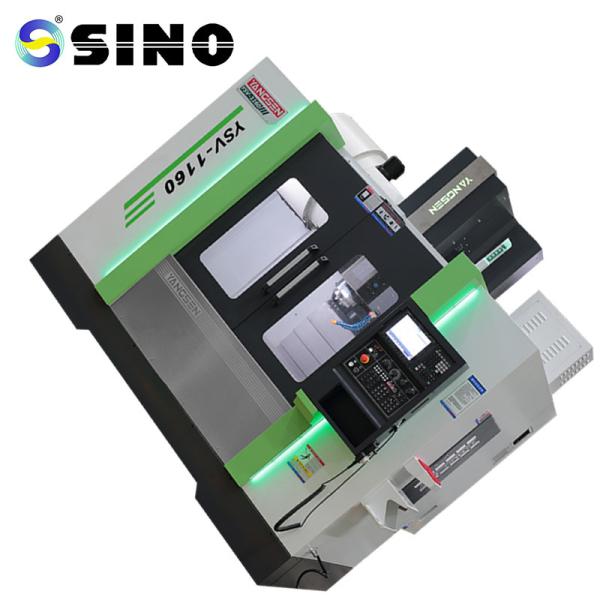

Product image /photos:
Installation, commissioning, acceptance, and training
1. Installation and commissioning: Our service engineer will visit the customer's plant as soon as the machine tool is delivered to do installation and commissioning as well as on-site training.
2. Customers have the option of sending operators to our company for a week or so of initial training, after which our firm will conduct on-site training at the customer's location during installation and commissioning.
3. Acceptance: Accuracy acceptance examines the items that can be examined at the customer's location and the inspection items that do not satisfy the inspection requirements, such as positioning accuracy, spindle taper hole accuracy inspection stick test, etc., in accordance with the ex-factory accuracy inspection table provided by the supplier.
For inspection and acceptance, the buyer will dispatch workers to the supplier's factory.
After-sales service concept
1. Pre-sales service: Janssen's sales representatives will present clients with the finest processing alternatives, including tool and fixture selection, option configuration, and machine tool selection.
administration of lubricating oil, cutting fluids, and other services. offering turnkey projects in addition.
2. Maintenance response time: We have a service crew of up to 26 people and a fully working service van at our disposal. As soon as we receive the user's failure notification, we will respond within two hours.
3. Parts inventory: Janssen has a specialized production facility and a full stock of parts in Xiamen. Each office maintains stockpiles of frequently used parts to provide users with the fastest repair components.
4. Maintenance of machine tools: All machine tools that are covered by a warranty period receive free maintenance services, and machine tools that are not covered by a warranty can pay affordable and fair fees for maintenance services. Plan the equipment management and maintenance process based on customer needs.
5. Maintenance fees after the warranty has expired: The standard for billing is made apparent at the actual cost, only the cost is incurred, and the user is treated with the concepts of openness, fairness, and fairness.
6. Special old user service department: closely monitor machine tool use and promptly address maintenance problems.
7. Maintenance oversight: The general manager also functions as the after-sales service department's director, monitoring the maintenance services' quality in real time and defending clients' rights.
the setting under which machines operate
1. Three-phase AC power supply; 380V 10%, 15%; 50Hz 1Hz
2. 840°C is the outdoor temperature.
3. relative humidity: 80%
4. For the air supply pressure, 0.6 to 0.8 MPA
Product Tags:
|
|
Metal CNC Vertical Milling Machine SINO YSV-1160 Three Axis CNC Milling Machine Kit Images
|
